A cartridge captures suspended particles such as dirt and sand before they reach the main treatment tank.
Private well. Purpose-built treatment.
Stainless Steel Complete Well Water System
Iron treatment, softening and SMART filtration together. A coordinated setup for staining, odors and hard-water scale.
Stainless steel systems.
Complete Well Water SystemHardware by Crystal Quest
- Dedicated treatment for iron, manganese and sulfur odor
- Salt-based softening reduces hardness and scale buildup
- SMART filtration and carbon polishing for additional treatment
$5,204.00Equipment only
Free U.S. shipping
Installation and applicable taxes are separate.
Easy to plan. Installed by your licensed plumber.Designed for straightforward installation at your main water line. Share the manual below so your plumber can confirm the fit and quote the job.
The simple explanation
Who it’s for
Our suggested package when a well test confirms iron, manganese or hydrogen sulfide along with hardness. The softener is part of this system, with a separate brine tank.
Findings such as bacteria, nitrate, arsenic, tannins or high dissolved solids may need a different or additional treatment plan. These packages are not universal solutions. “Complete” describes the included stages. It is not a promise to address every well-water contaminant.
How it works
Follow the water.
See what each stage does. Select a stage to take a closer look.
Water in To your home
Specialty media targets iron, manganese and hydrogen sulfide. Automatic backwashing flushes the media; some water conditions require oxidation or additional treatment.
Ion-exchange resin replaces calcium and magnesium hardness ions with sodium. Salt in the separate brine tank regenerates the resin; brine is not the normal water path to your home.
A blend of filtration media treats a range of water-quality concerns through adsorption and redox processes. Match specific reduction needs to the exact manufacturer configuration.
The final carbon cartridge polishes the water for taste and odor. Replace it as conditions require; it is not a disinfection stage.
Treatment overview, not a plumbing diagram. Shows the base equipment only; selected add-ons require additional stages. Performance depends on water chemistry, flow and maintenance.
Installation

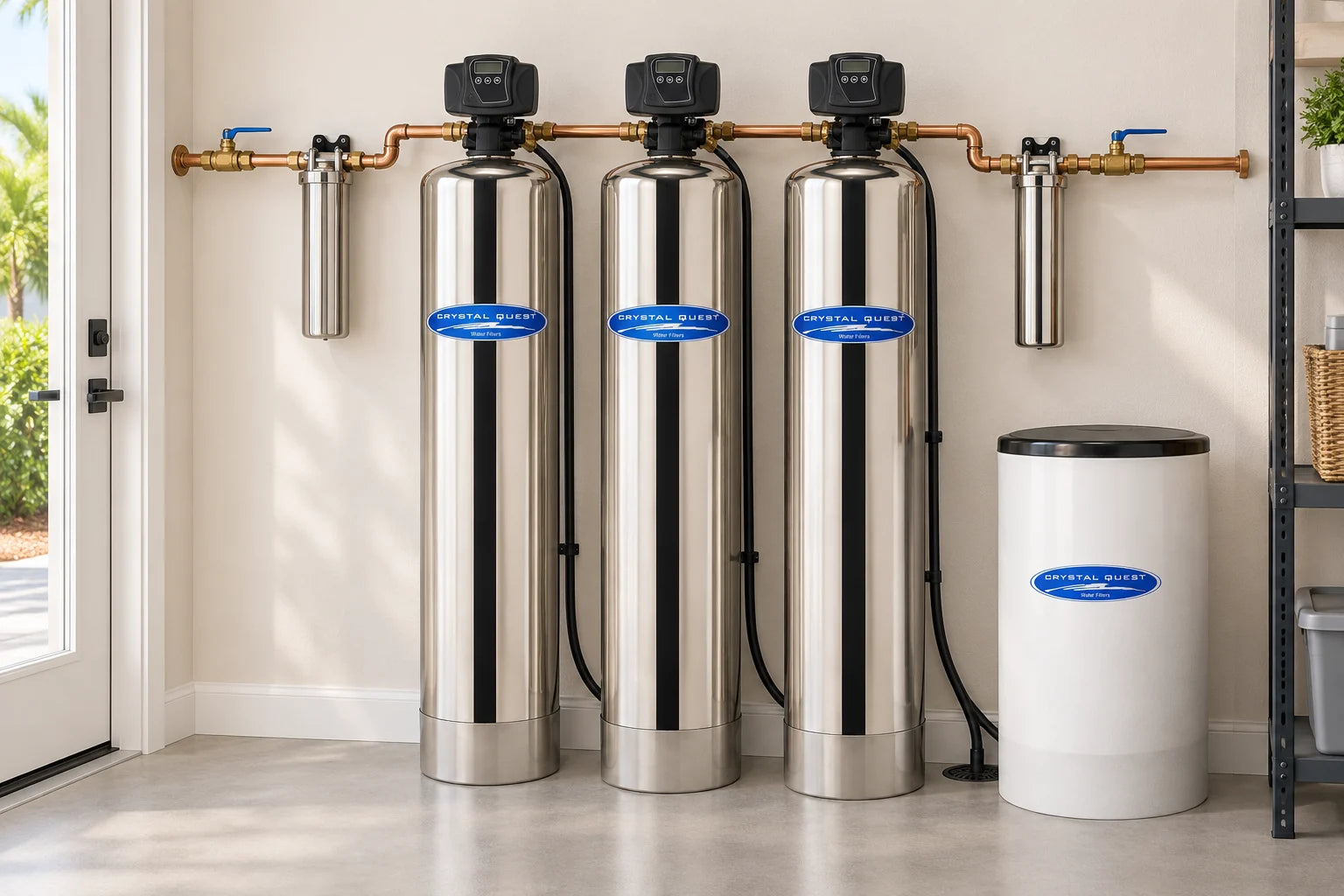

Picture it in your home.
A clean, organized setup at your main water line. Your licensed plumber plans the connections and service access for your space.
Hardware by Crystal Quest
Why choose Crystal Quest for your well?
Compare what goes into the system, how it fits your water and how you will care for it over time.
| What matters | Crystal Quest | What to check with other brands |
|---|---|---|
| U.S. engineering & assembly | Engineered & assembled in the USA | Ask where the equipment is designed and assembled. |
| An experienced manufacturer | Crystal Quest · Since 1994 | Look for a water-treatment track record and accessible support. |
| Documented quality processes | Manufactured under an ISO 9001 certified quality management system. | Check what is certified: the company, a component or the finished model. |
| Treatment matched to your needs | Iron treatment, salt-based softening and SMART filtration, plus sediment/carbon cartridges. UV is a separate add-on. | Compare the actual treatment stages, rated flow and included accessories. |
| Parts for ongoing care | Manufacturer manuals and replacement components help you plan routine service with your plumber. | Check replacement-part availability and the maintenance schedule before buying. |
Customer feedback
From Crystal Quest customers.
Selected excerpts published by Crystal Quest. Each card names the product reviewed; these are manufacturer reviews, not reviews collected by Clearhouse or ratings of this exact package.
“The purchase was easy…”
Stacy B.
Source: Crystal Quest · Review excerpt
“I would most definitely purchase from you again.”
Jonathan T.
Source: Crystal Quest · Review excerpt
“The staff of Crystal Quest is great.”
Crystal Quest customer
Source: Crystal Quest · Review excerpt
The equipment. Clearly laid out.
Included in your package

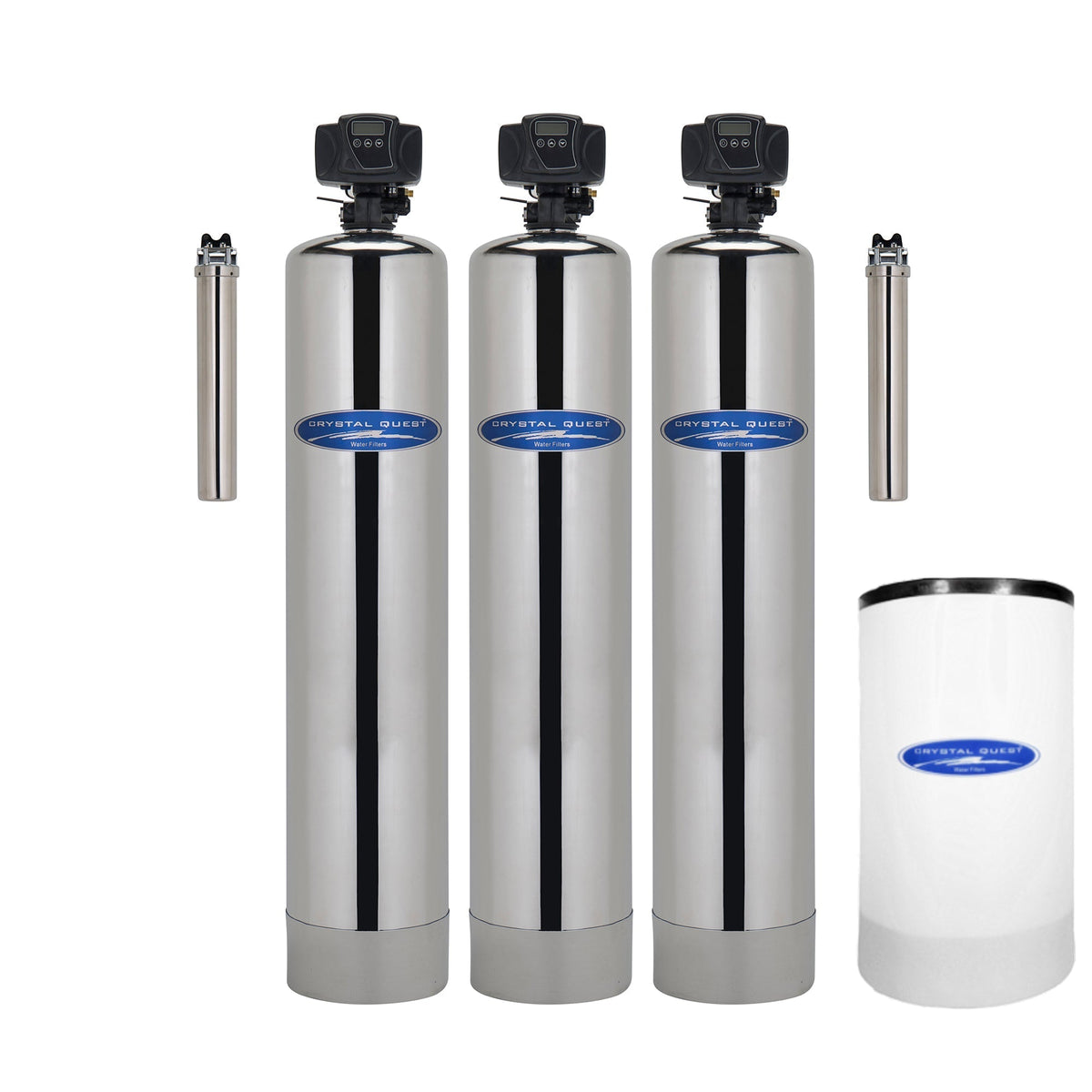

20-inch sediment prefilter, stainless steel metal-removal tank, salt-based softener and brine tank, stainless steel SMART tank, automatic controls and 20-inch carbon postfilter.
Budget for these separately
UV treatment, oxidation equipment and a leak-detection shutoff valve are not included. Installation, site-specific parts and applicable taxes are separate. U.S. shipping is free. Softener salt is separate when applicable.
Installation instructions
Better water. Straightforward installation.
A licensed plumber installs the system at your main water supply. Give them the matching PDF below for the exact plumbing, control and startup instructions. Labor, site-specific parts and permits are quoted separately.
- 01
Confirm the location and fit.
Your plumber checks the main line, household flow, pressure, tank clearance, drain access and electrical requirements before installation.
- 02
Connect your treatment system.
Your plumber follows the matching manual, connects bypass and drain lines as required, and confirms the treatment order. UV is installed after suitable pretreatment.
- 03
Flush, program and check.
Flush and start up each stage, program any backwash and regeneration using your lab results, check for leaks and verify treated-water performance.
Download installation instructions
Whole-house installation manual (PDF)
Manufacturer instructions for the iron-treatment system, softener and SMART filter stages.
Open PDF ↗Complete well-system layout
Manufacturer diagram: sediment → iron treatment → softener → SMART filtration → carbon. The brine tank serves the softener.
Open PDF ↗Good questions. Clear answers.
What ongoing maintenance should I expect?
Keep softener salt topped up, replace cartridges and maintain backwash and regeneration. Your measured hardness and water use determine settings and service intervals.
Is installation included in the price?
Installation is separate from the equipment price. These systems are designed for straightforward installation by a licensed plumber. You choose and pay your plumber directly. U.S. shipping is free; applicable taxes and site-specific parts are separate.
Where can I see the technical details?
Supplier model: CQE-WH-01209
Three coordinated treatment tanks for well water with confirmed iron, manganese or hydrogen sulfide plus hardness. Includes a 20-inch sediment prefilter, metal-removal tank, salt-based softener with brine tank, SMART filtration tank and 20-inch carbon postfilter. Treatment tanks have stainless steel housings.
Standard: 1.5 cu. ft. configuration, model CQE-WH-01209, listed service flow 9–11 GPM. Large: 2.0 cu. ft. configuration, model CQE-WH-01210, listed service flow 10–13 GPM. Final sizing also depends on hardness, water chemistry and backwash flow.
UV treatment, oxidation equipment and a leak-detection shutoff valve are not included. The word complete describes the supplied treatment stages, not a guarantee that every well-water contaminant is addressed. Confirm any bacteria, nitrate, arsenic, tannins or dissolved-solids findings separately.
Share a well-water lab report with your licensed plumber and treatment specialist before ordering. Your plumber confirms the final layout, water pressure, drainage, power and space, then installs and starts up the system. Free U.S. shipping. Softener salt, installation, applicable taxes and site-specific parts are separate.
Compare well-water systems
Choose the package using your well test. Select Standard or Large on the product page after your plumber confirms the flow.
