Water passes an enclosed UV lamp that helps inactivate susceptible microorganisms. Clear, properly pretreated water and a flow of no more than 12 GPM are essential.
Private well. Purpose-built treatment.
12 GPM UV Water Treatment Add-On
When water testing and your treatment plan call for another disinfection step, UV can help inactivate susceptible microorganisms after suitable pretreatment.
Stainless steel systems.
Add UV treatmentHardware by Crystal Quest
- Stainless steel UV chamber for pretreated water
- 12 GPM maximum · 110V configuration
- No chemicals added by the UV treatment stage
$569.00Equipment only
Free U.S. shipping
Installation and applicable taxes are separate.
Easy to plan. Installed by your licensed plumber.Designed for straightforward installation at your main water line. Share the manual below so your plumber can confirm the fit and quote the job.
Why this system
When it makes sense
Use after filtration and any needed softening. Feed water must have turbidity below 1 NTU, hardness below 7 gpg, iron below 0.3 mg/L, manganese below 0.05 mg/L and UV transmittance above 75%.
UV does not remove iron, hardness, sediment or dissolved chemicals. It provides no lasting disinfectant residual. Confirm that it suits the organisms and conditions identified by your well test.
How it works
Follow the water.
See what each stage does. Select a stage to take a closer look.
Water in To your home
Treatment overview, not a plumbing diagram. Shows the base equipment only; selected add-ons require additional stages. Performance depends on water chemistry, flow and maintenance.
Installation

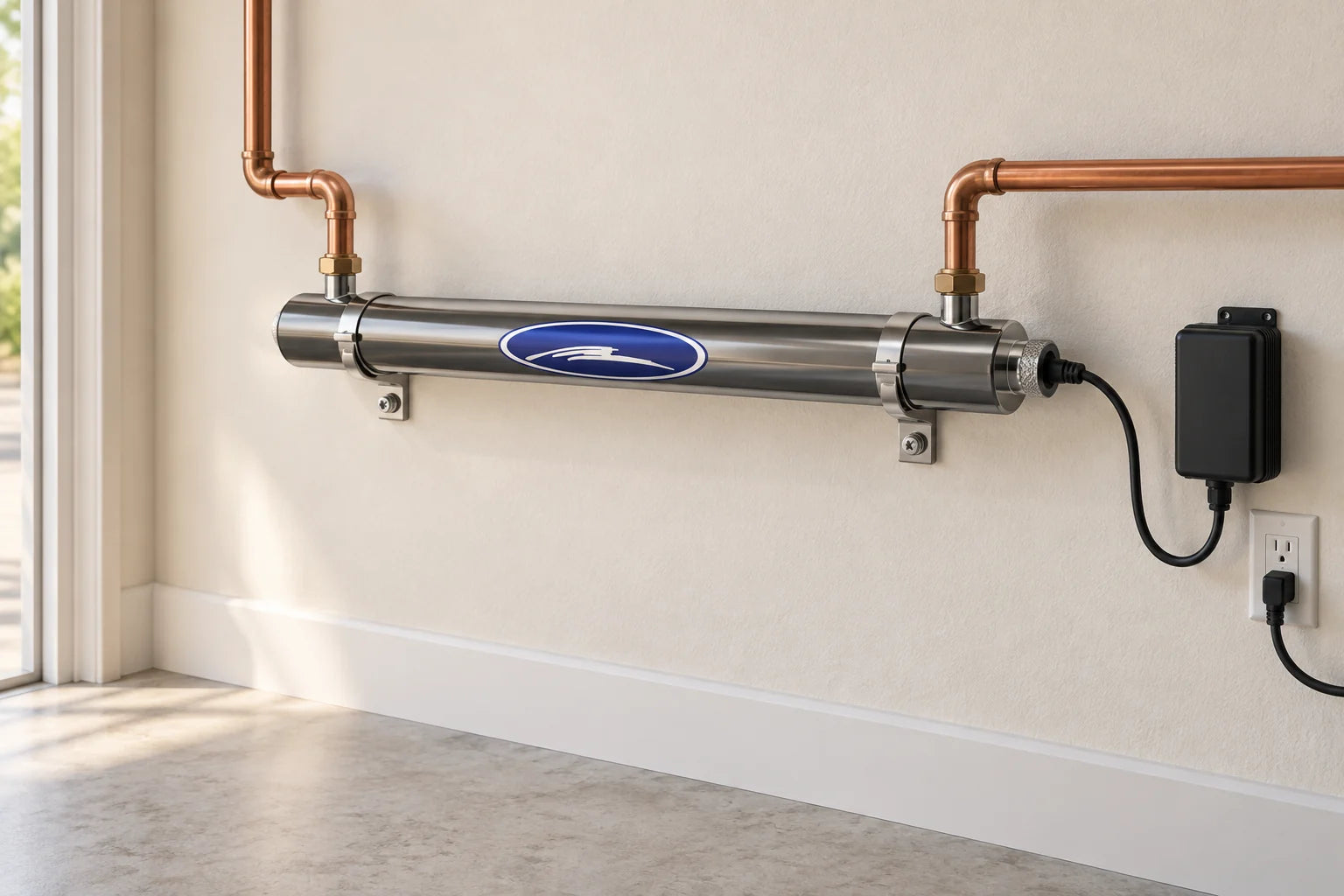

Picture it in your home.
A clean, organized setup at your main water line. Your licensed plumber plans the connections and service access for your space.
Hardware by Crystal Quest
Why choose Crystal Quest for your home?
Compare what goes into the system, how it fits your water and how you will care for it over time.
| What matters | Crystal Quest | What to check with other brands |
|---|---|---|
| U.S. engineering & assembly | Engineered & assembled in the USA | Ask where the equipment is designed and assembled. |
| An experienced manufacturer | Crystal Quest · Since 1994 | Look for a water-treatment track record and accessible support. |
| Documented quality processes | Manufactured under an ISO 9001 certified quality management system. | Check what is certified: the company, a component or the finished model. |
| Treatment matched to your needs | A stainless steel UV chamber for properly pretreated water, rated up to 12 GPM. Filtration and softening are separate. | Compare the actual treatment stages, rated flow and included accessories. |
| Parts for ongoing care | Manufacturer manuals and replacement components help you plan routine service with your plumber. | Check replacement-part availability and the maintenance schedule before buying. |
Customer feedback
From Crystal Quest customers.
Selected excerpts published by Crystal Quest. Each card names the product reviewed; these are manufacturer reviews, not reviews collected by Clearhouse or ratings of this exact package.
“I would most definitely purchase from you again.”
Jonathan T.
Source: Crystal Quest · Review excerpt
“The purchase was easy…”
Stacy B.
Source: Crystal Quest · Review excerpt
“The staff of Crystal Quest is great.”
Crystal Quest customer
Source: Crystal Quest · Review excerpt
What’s included.
Included in your package

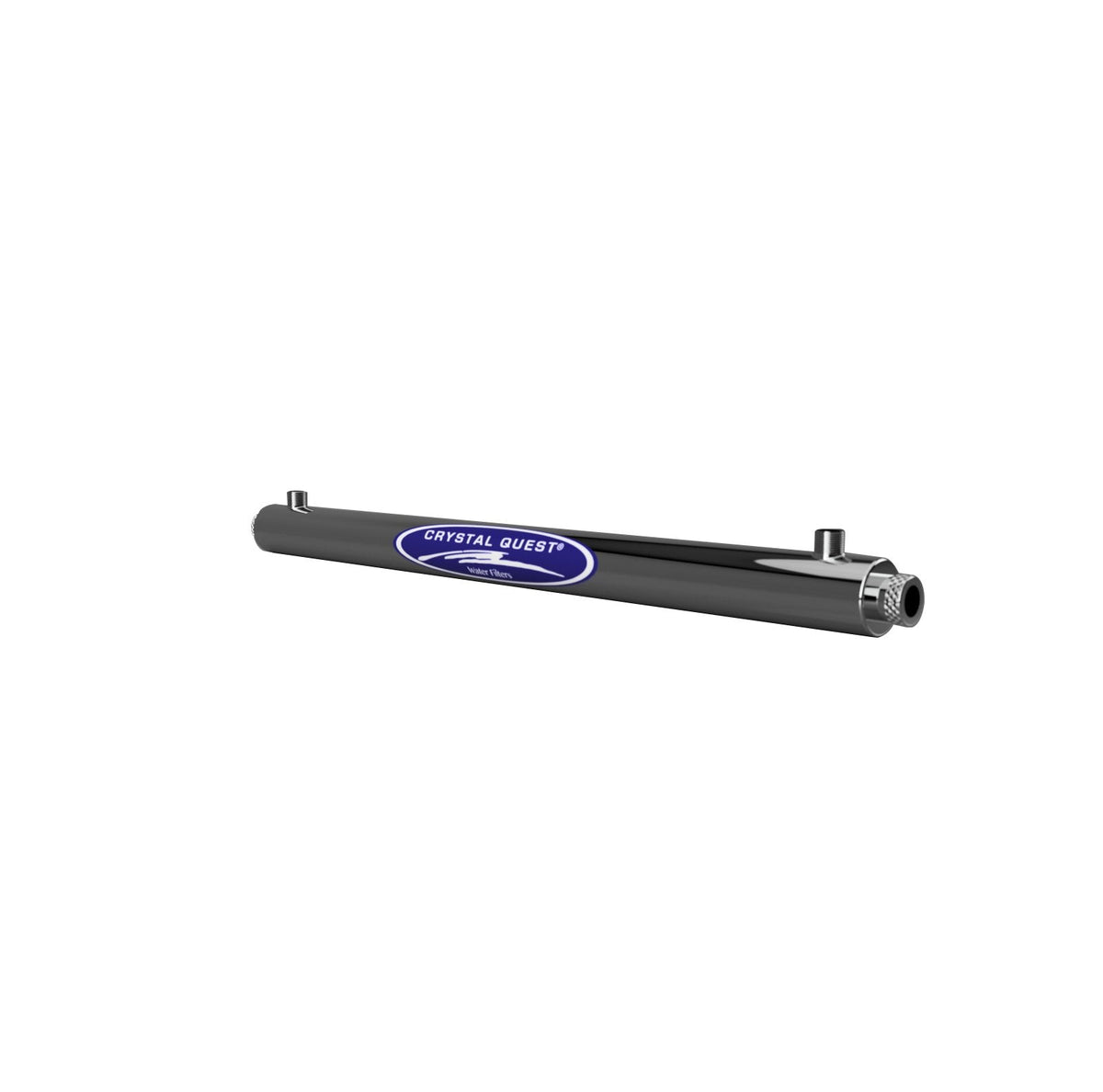

Stainless steel chamber, UV lamp, quartz sleeve and power supply. Model CQE-UV-00104. Chamber dimensions listed by the manufacturer: 3 × 40 inches.
Budget for these separately
Installation and applicable taxes are separate. Replace the lamp at 9,000 hours (about one year of continuous use) and clean the quartz sleeve as needed. Keep the unit powered and allow clearance for lamp service.
Installation instructions
Your system. Your plumber.
Share your equipment brief and manual with a licensed plumber. Confirm the fit and get a separate installation quote before you order.
- 01
Confirm the location and fit.
Your plumber checks the main line, household flow, pressure, tank clearance, drain access and electrical requirements before installation.
- 02
Connect your treatment system.
Your plumber follows the matching manual, connects bypass and drain lines as required, and confirms the treatment order. UV is installed after suitable pretreatment.
- 03
Flush, program and check.
Flush and start up each stage, program any backwash and regeneration using your lab results, check for leaks and verify treated-water performance.
Download installation instructions
UV installation manual (PDF)
Feed-water limits, electrical requirements, lamp clearance, startup and care for the UV chamber.
Open PDF ↗Before you order.
What ongoing maintenance should I expect?
Replace the lamp at 9,000 hours (about one year of continuous use) and clean the quartz sleeve as needed. Keep the unit powered and allow clearance for lamp service.
Is installation included in the price?
No. Hire and pay your own licensed plumber. Equipment ships free within the U.S.; installation, site-specific parts and taxes are separate.
Where can I see the technical details?
Supplier model: CQE-UV-00104
Add a disinfection stage when your water treatment plan calls for one. This Crystal Quest UV chamber helps inactivate susceptible microorganisms as properly pretreated water passes the lamp. It is rated for a maximum of 12 GPM; UV does not remove hardness, iron, sediment or dissolved chemicals.
Know before choosing: Effective operation depends on feed-water clarity and the manufacturer's limits for hardness, iron, manganese and UV transmission. Arrange suitable pretreatment, electricity, lamp replacement and quartz-sleeve care with your installer.
UV helps inactivate susceptible microorganisms as water passes the lamp. It does not remove iron, hardness, sediment or dissolved chemicals and provides no lasting disinfectant residual.
Before installation, confirm the manual’s feed-water limits, including turbidity below 1 NTU, hardness below 7 gpg, iron below 0.3 mg/L, manganese below 0.05 mg/L and UV transmittance above 75%. Your installer may need softening and other pretreatment. Keep peak flow at or below 12 GPM even when the main filter has a higher flow rating.
Manufacturer-listed chamber dimensions: 3 × 40 inches; lamp life: 9,000 hours, about one year of continuous use. Electricity, lamp replacement and quartz-sleeve cleaning are required. A licensed plumber installs the unit and confirms pretreatment, lamp-service clearance and flow control. Free U.S. shipping. Installation and applicable taxes are separate.
Compare well-water systems
Choose the package using your well test. Select Standard or Large on the product page after your plumber confirms the flow.
